PUF, PIR and phenolic foam

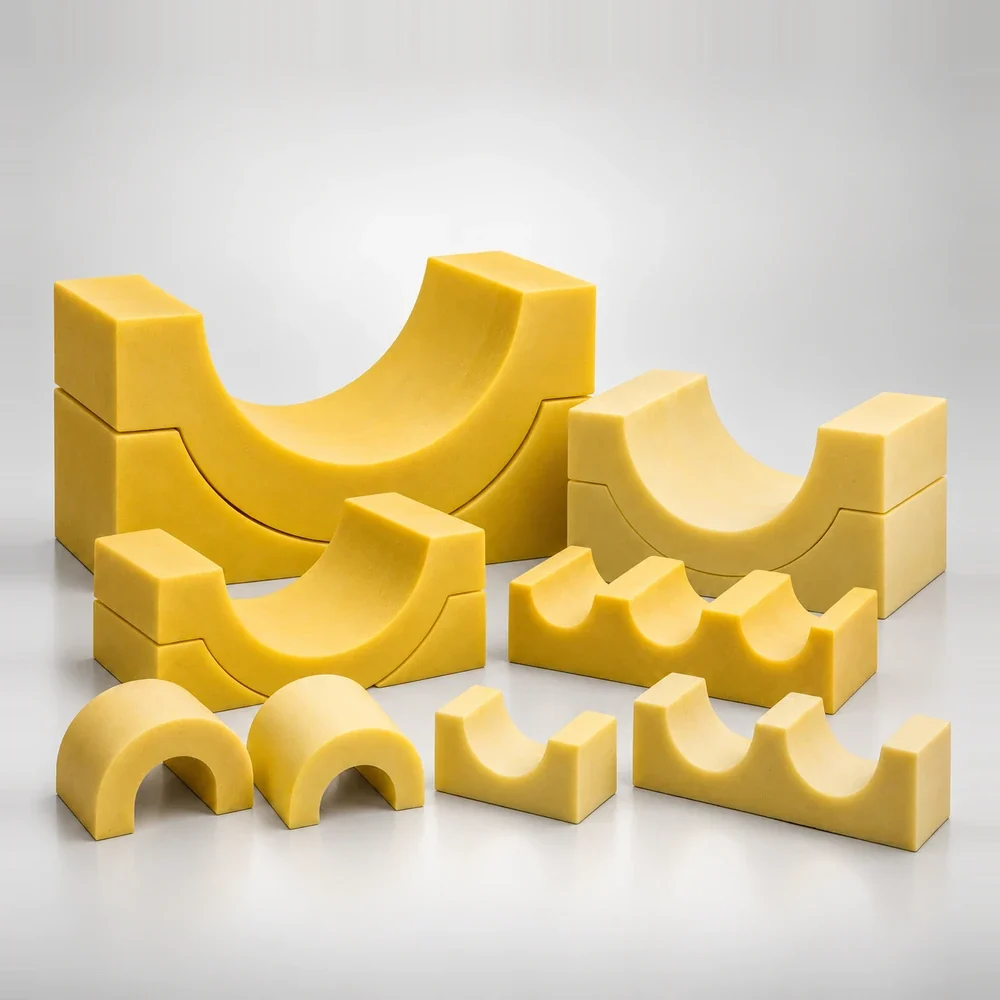

PUF Pipe Support
High density insulation pipe support blocks
Insulation pipe supports are designed to prevent direct heat transfer between a pipe or tank and its support, which cuts conduction at each support. The supports are not welded; each unit is shipped completely assembled (except riser and anchor supports). The density of PUF supports normally varies from 100 kg/m³ to 350 kg/m³, and in special cases it can go up to 500 kg/m³.
- 100 - 140 kg/m³Standard density
- 1" to 14"Pipe diameter
- 75 / 100 mmThickness
Ex-stock at Vatva GIDC (Ahmedabad) and Jetpar Road (Morbi). The datasheet and test certificates come with every dispatch.
Where PUF Pipe Support is used
3 common applications. Not sure it suits your duty? Send us the operating temperature and we will tell you.
- 01Chilled water and brine pipelines
- 02Cold process lines on racks and sleepers
- 03Riser and anchor points on cold lines
Technical characteristics
Values as given in the product datasheet.
| Property | Value |
|---|---|
| Density | 100 - 140 kg/m³ (higher densities also available) |
| Pipe diameter | 1" to 14" |
| Thickness | 75, 100 mm |
PUF Pipe Support datasheetPDF, 230 KB, sent to your inbox. Full technical values, sizes and applications.
Why specify PUF Pipe Support
9 reasons it earns its place on site.
High density and high compressive strength provide structural strength
Minimises both thermal transfer and condensation
High compressive strength supports roof and column loads
Cost effective
Creep resistance
Closed cell material does not absorb water
Does not promote steel corrosion
Resists insect and vermin growth
Compatible with grouts, adhesives and concrete
Services that use this product
We supply PUF Pipe Support on its own, or fit it as part of these services with our own crews.
Thermal insulation
Heat loss and heat gain controlled on tanks, equipment and buildings, specified by operating temperature.
Read more
Questions, answered.
The ones we get most about PUF Pipe Support. Anything else? Ask on WhatsApp and an estimator will reply.
What sizes and grades does PUF Pipe Support come in?
Thickness: 75, 100 mm; Pipe diameter: 1" to 14"; Density: 100 - 140 kg/m³ (higher densities also available). If you need a size that is not listed, ask us and we will check what the manufacturer can make.
Where is PUF Pipe Support used?
Typical uses: chilled water and brine pipelines; cold process lines on racks and sleepers; riser and anchor points on cold lines.
Can SGPL supply and install PUF Pipe Support?
Yes. We supply it on its own, or our own crews install it as part of our cold insulation and thermal insulation work. That starts with a site visit and a written specification, and ends with a joint measurement at handover.
Is PUF Pipe Support in stock, and do you send a datasheet?
We hold PUF Pipe Support at our Vatva GIDC (Ahmedabad) and Morbi stockyards. You can download the datasheet on this page, and we can send the test certificate with the dispatch. Send your enquiry before 4 pm and you will usually hear back the same working day.
