Flexible Duct
HVAC flexible air ducting

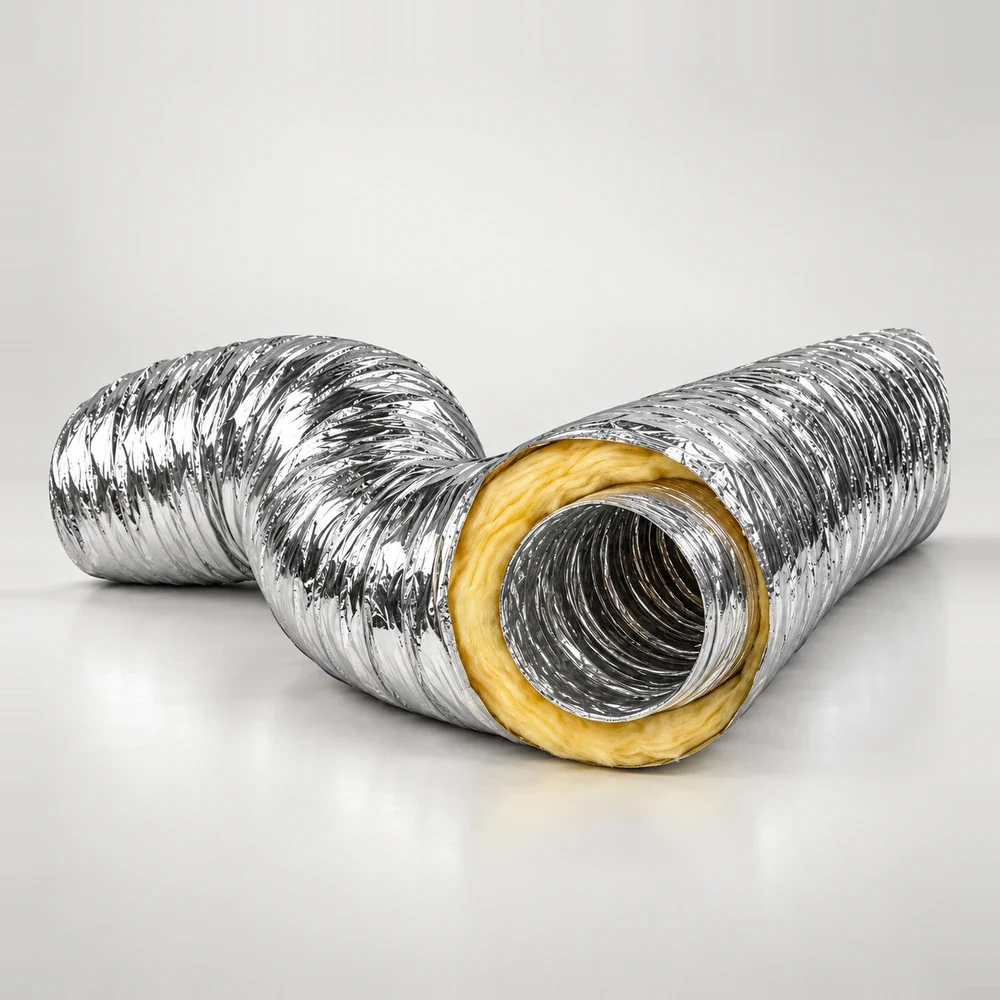

Flexible duct is designed for HVAC systems. It is lightweight, strong, fully flexible and compressible, yet dimensionally stable. It is made of a double lamination of films permanently bonded to a coated spring steel wire helix. For thermal efficiency it is wrapped externally with fibreglass wool insulation of the density and thickness the thermal resistance calls for. The outer jacket is a double laminated film with fibreglass yarn reinforcement, which acts as a vapour barrier.
- 16 - 32 kg/m³Density
- 4" to 20"Diameter range
- 0 - 90°CTemperature range
Ex-stock at Vatva GIDC (Ahmedabad) and Jetpar Road (Morbi). The datasheet and test certificates come with every dispatch.
Where Flexible Duct is used
4 common applications. Not sure it suits your duty? Send us the operating temperature and we will tell you.
- 01Commercial buildings
- 02Hotels
- 03Hospitals
- 04Industrial and residential air conditioning and ventilation
Technical characteristics
Values as given in the product datasheet.
| Property | Value |
|---|---|
| Density | 16 - 32 kg/m³ |
| Standard length | 25 ft / 10 ft |
| Diameter range | 4 inches to 20 inches |
| Maximum rated velocity | 4000 ft/min |
| Temperature range | 0 - 90°C |
| Max. rated positive pressure | 10 inch water |
| Max. negative pressure | 1 inch water |
| Standard thickness | 25 mm |
| Insulation R value | 0.64 m²K/W |
| Fire rating | Certified as per BS 476 Part 5, 6 and 7 |
Flexible Duct datasheetPDF, 364 KB, sent to your inbox. Full technical values, sizes and applications.
Why specify Flexible Duct
9 reasons it earns its place on site.
Economical answer to air handling needs
Air tight: no air leakage, no fibre erosion
Core material: low friction loss, strong and flame resistant
Wire is strong and non-corrosive
Modular and economical air distribution system with a maintenance free life
Highly flexible, connects at any position
Available bare and pre-insulated
Reduces total installed cost: fast and easy to install
Routes around obstacles where rigid ducts would be difficult and costly
Services that use this product
We supply Flexible Duct on its own, or fit it as part of these services with our own crews.
Questions, answered.
The ones we get most about Flexible Duct. Anything else? Ask on WhatsApp and an estimator will reply.
What temperature can Flexible Duct take?
Temperature range: 0 - 90°C, as per the datasheet. Tell us your operating temperature and we will confirm the right grade before we quote.
What sizes and grades does Flexible Duct come in?
Diameter range: 4 inches to 20 inches; Density: 16 - 32 kg/m³. If you need a size that is not listed, ask us and we will check what the manufacturer can make.
Where is Flexible Duct used?
Typical uses: commercial buildings; hotels; hospitals; industrial and residential air conditioning and ventilation.
Can SGPL supply and install Flexible Duct?
Yes. We supply it on its own, or our own crews install it as part of our HVAC insulation work. That starts with a site visit and a written specification, and ends with a joint measurement at handover.
Is Flexible Duct in stock, and do you send a datasheet?
We hold Flexible Duct at our Vatva GIDC (Ahmedabad) and Morbi stockyards. You can download the datasheet on this page, and we can send the test certificate with the dispatch. Send your enquiry before 4 pm and you will usually hear back the same working day.
