Cladding and jacketing

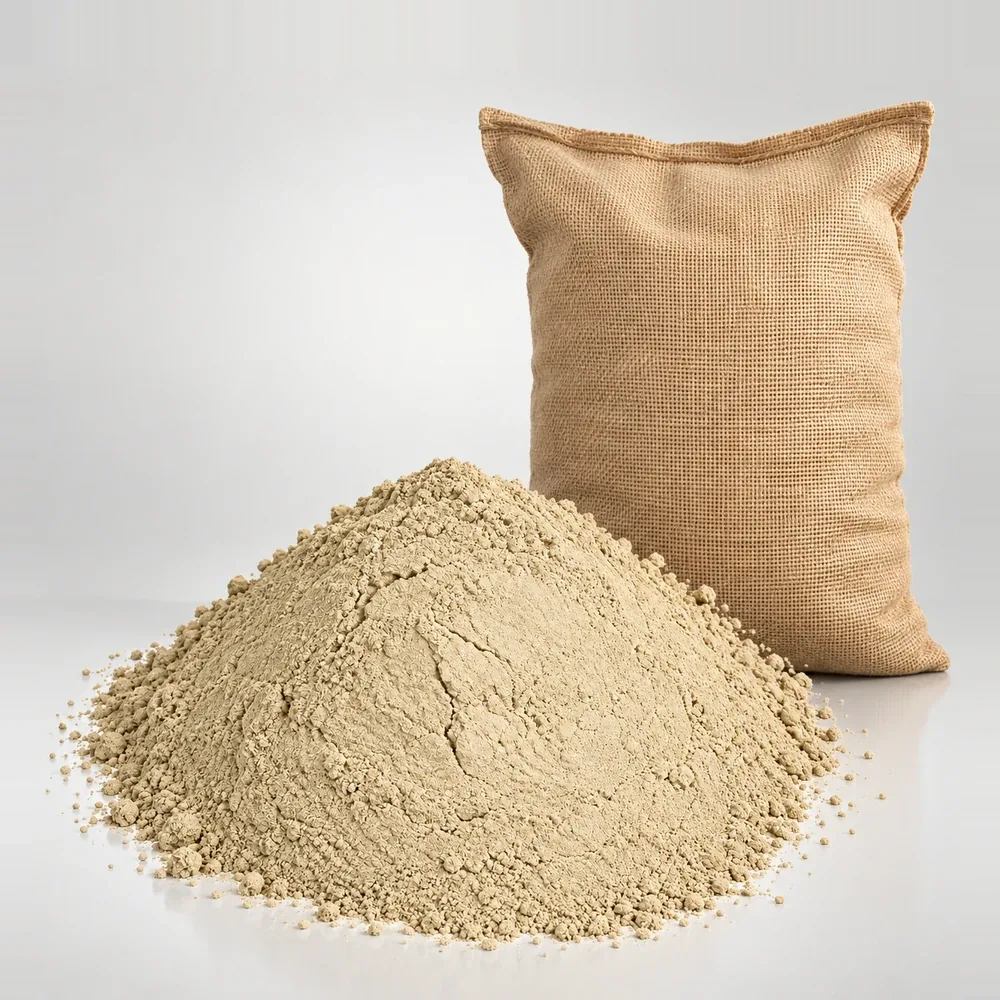

CAT-9 Self Setting Cement
Asbestos free protective insulation coating
CAT-9 is an asbestos free inorganic mineral fibre combined with hydraulic cement and chemically inert fillers. Mixed with water, it forms a general purpose protective coating with self setting properties.
- Up to 700°CTemperature range
- 1200 - 1250 kg/m³Applied density
- 50 kgPacking
Ex-stock at Vatva GIDC (Ahmedabad) and Jetpar Road (Morbi). The datasheet and test certificates come with every dispatch.
Where CAT-9 Self Setting Cement is used
5 common applications. Not sure it suits your duty? Send us the operating temperature and we will tell you.
- 01Steam turbines
- 02Vessels and tanks
- 03Pipe work
- 04Chemical process plants
- 05Gas ducts
Technical characteristics
Values as given in the product datasheet.
| Property | Value |
|---|---|
| Applied density | 1200 to 1250 kg/m³ |
| Box density | 750 to 800 kg/m³ |
| Wet covering capacity | Approx. 62 m²/MT at 12 mm; 125 m²/MT at 6 mm |
| Resistance to impact | 20 - 24 mm |
| Resistance to compression | 4500 - 5000 kN/m² |
| Flexural strength | 2800 - 3100 kN/m² |
| Shrinkage | 0.18% maximum |
| Initial set | Within 24 hours |
| Final set | 20 - 25 days after laying |
| Drying time | 48 hours normal; up to 72 hours in cold humid conditions |
| Temperature range | Up to 700°C |
| Packing | 50 kg polythene lined hessian bags |
CAT-9 Self Setting Cement datasheetPDF, 409 KB, sent to your inbox. Full technical values, sizes and applications.
Why specify CAT-9 Self Setting Cement
4 reasons it earns its place on site.
Effective thermal insulator
Good weather resistance and abrasion resistance
Non-combustible
Good structural strength
Services that use this product
We supply CAT-9 Self Setting Cement on its own, or fit it as part of these services with our own crews.
Insulation cladding & finishing
Aluminium, GI and stainless cladding, bands and sealants that keep the insulation dry.
Read more
Questions, answered.
The ones we get most about CAT-9 Self Setting Cement. Anything else? Ask on WhatsApp and an estimator will reply.
What temperature can CAT-9 Self Setting Cement take?
Temperature range: Up to 700°C, as per the datasheet. Tell us your operating temperature and we will confirm the right grade before we quote.
What sizes and grades does CAT-9 Self Setting Cement come in?
Packing: 50 kg polythene lined hessian bags. If you need a size that is not listed, ask us and we will check what the manufacturer can make.
Where is CAT-9 Self Setting Cement used?
Typical uses: steam turbines; vessels and tanks; pipe work; chemical process plants.
Can SGPL supply and install CAT-9 Self Setting Cement?
Yes. We supply it on its own, or our own crews install it as part of our hot insulation and insulation cladding and finishing work. That starts with a site visit and a written specification, and ends with a joint measurement at handover.
Is CAT-9 Self Setting Cement in stock, and do you send a datasheet?
We hold CAT-9 Self Setting Cement at our Vatva GIDC (Ahmedabad) and Morbi stockyards. You can download the datasheet on this page, and we can send the test certificate with the dispatch. Send your enquiry before 4 pm and you will usually hear back the same working day.
